12KW/18KW HMI Compact Daylight Fresnel Kit | ALUMOTECH

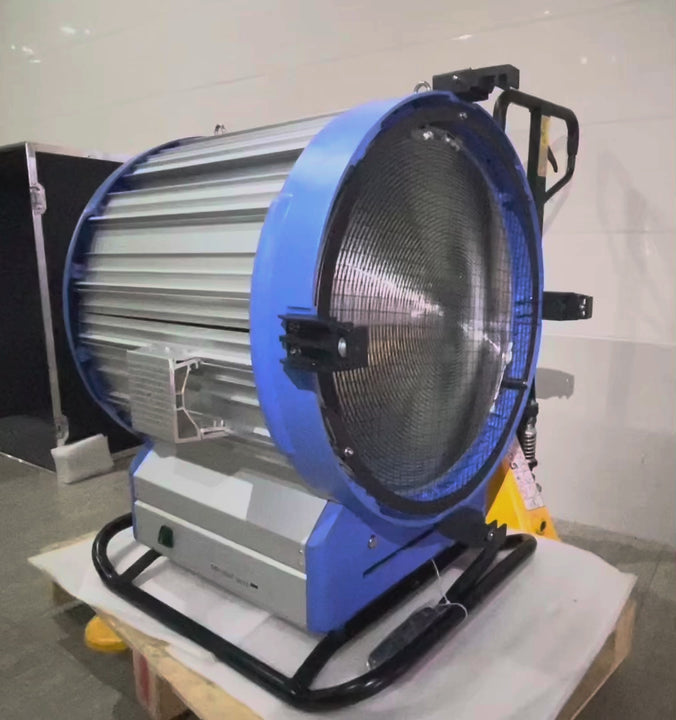

ALUMOTECH 12KW/18KW Compact Daylight Fresnel Kit

The ALUMOTECH HMI-18KW-C is a professional high-output daylight lighting system designed for film production, television studios, large-scale outdoor sets and professional rental applications.

The same compact lamp head can operate with either a 12,000W or 18,000W single-ended HMI lamp. The supplied electronic ballast supports both 12KW and 18KW operation, allowing the user to select the appropriate lamp power for different production requirements.

Key Features

• One compact lamp head supports both 12KW and 18KW HMI lamps
• 12KW/18KW electronic ballast included
• High-output daylight illumination for professional productions
• Approximately 5600K daylight color temperature
• Adjustable beam angle from 15° to 50° with an 18KW lamp
• 50%–100% ballast dimming
• Square-wave flicker-free electronic ballast
• Suitable for high-speed film and television production
• UV-protection glass and aluminum reflector
• Heavy-duty yoke with 28mm mounting spigot
• CE-certified lighting system

Light Head Specifications

12KW/18KW Electronic Ballast Specifications

18KW Photometric Data

Photometric data is based on operation with an 18KW HMI lamp. Actual output may vary depending on the lamp brand, lamp age, voltage conditions and measurement environment.

Standard Kit Includes

• 1 × ALUMOTECH HMI-18KW-C 12KW/18KW compact lamp head
• 1 × 12KW/18KW electronic ballast
• 1 × 15m head-to-ballast extension cable
• 1 × 4-leaf barndoor
• 1 × Heavy-duty yoke with 28mm spigot

HMI lamp is not included.

Applications

• Feature film and television production
• Large studio and soundstage lighting
• Outdoor daylight fill lighting
• Commercial and advertising production
• Professional film equipment rental houses
• Large-scale event and broadcast production

Shipping and Technical Confirmation

This is a high-power professional lighting system. Before ordering, please contact ALUMOTECH to confirm the destination voltage, mains connector, cable requirements, shipping method and production lead time.

International freight, import duties and local taxes are not included unless otherwise stated in the official quotation.

Warranty

One-year limited warranty for the lamp head and electronic ballast under normal operating conditions. The HMI lamp and other consumable parts are not covered.
