DESCRIPTION

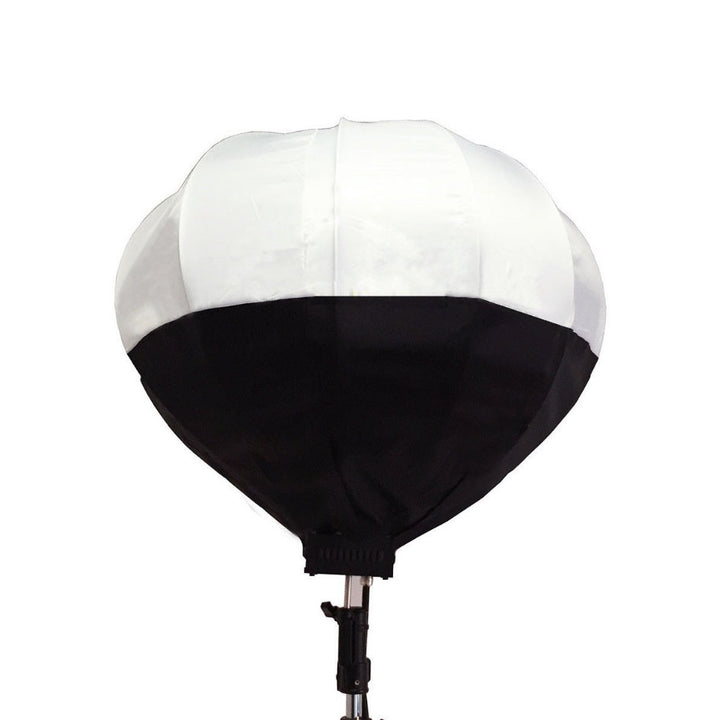

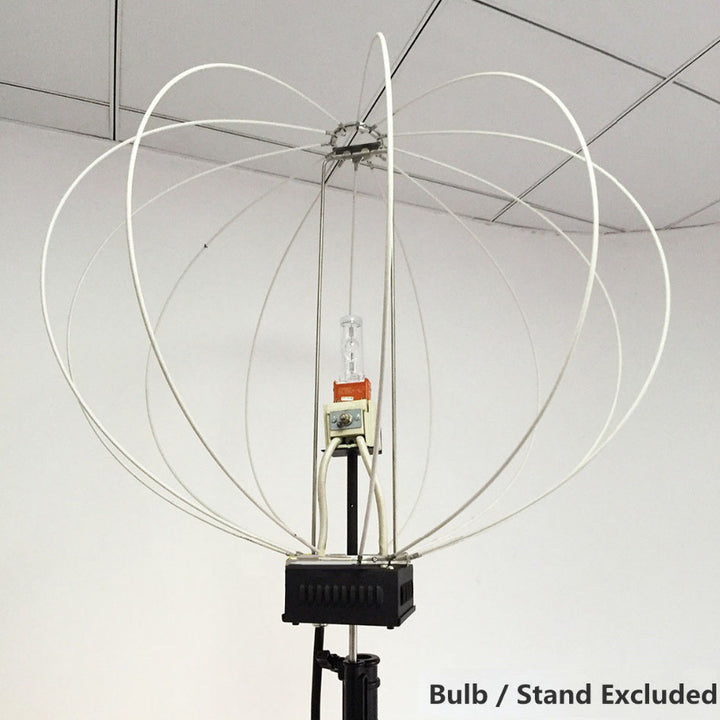

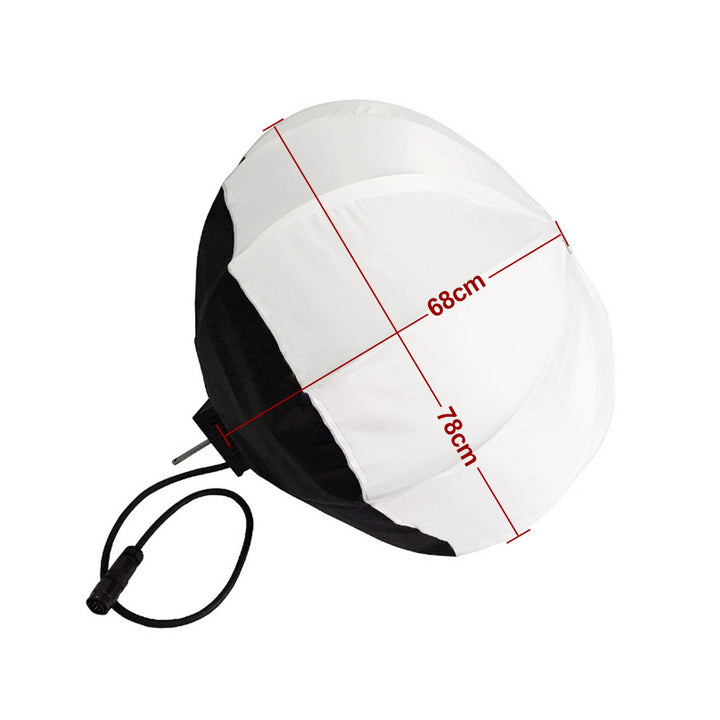

Parameter for Balloon Light Head
Lamp head type: Max
Power: 1800W
Color temperature:6000K

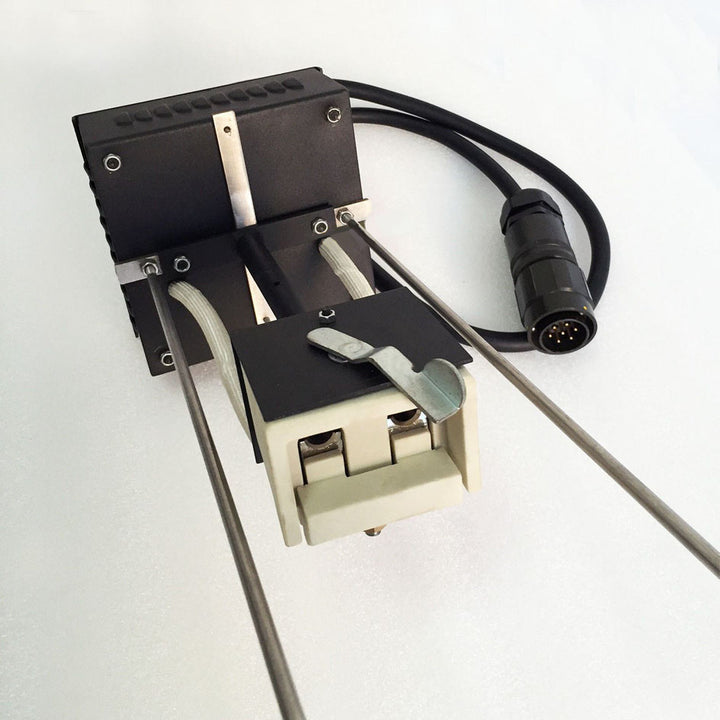

Bulb socket / lamp base: metal halide 1800W/SE, G38
Product weight: 9 kg
Protection class: IP 23
Power: 1800W
Color temperature:6000K
Bulb socket / lamp base: metal halide 1800W/SE, G38
Product weight: 9 kg
Protection class: IP 23

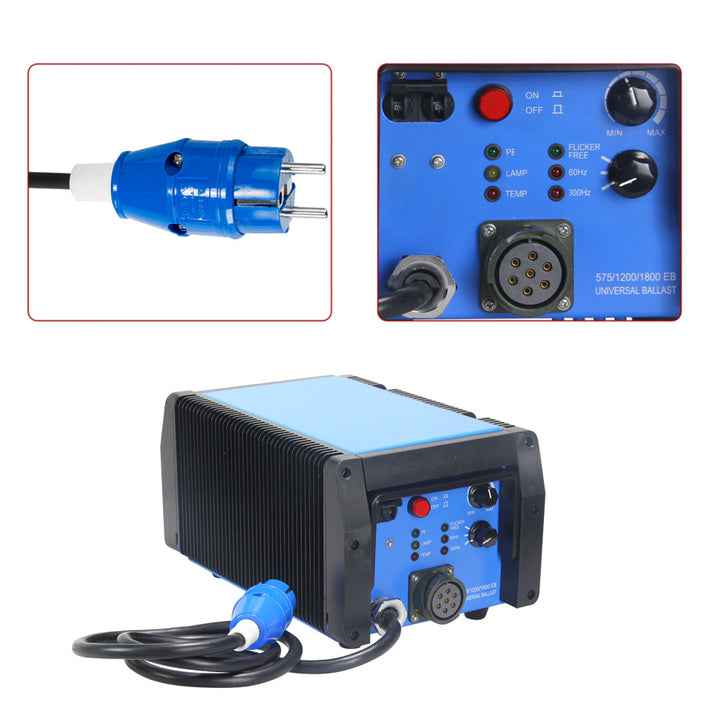

Light Ballast
Our HMI ballasts provide the latest standards in ballast technology. Flicker free, low noise, high output, this ballast is ideal
for most demanding. A rugged and compact design offers easy handling in the field.
Safety circuits such as over-voltage, over-temperature and short-circuit protection gives safe and reliable operation dimming to 50% of full power. Active Line Filter (A.L.F.) and P.F.C assures consistent color output, despite dimming, or main voltage fluctuations. Universal voltage at a switch of a button and flicker free mode. Compatible with 575W / 1200W / 1800W PAR units.
Parameter for Ballast
Ballast type: electronic ( NO DMX )
Ballast power: 575 / 1200 / 1800 watts
supply voltage:110V/220V AC 50/60Hz L,N,PE
Frequency mode: 60Hz/ 1000Hz/ flicker-free
Power factor: c > 0.98
Lamp power: 575W / 1200W / 1800W (constant control)
Current characteristic: square wave,60Hz
Dimming range: 100% - 50%
Nominal lamp power starting: cold start and hot re-strike
Typical light ripple: typ. <3%
Power cord: 1.5m
Protection class: IP32
Material: metal housing
Product weight: 8 kg
Dimensions (H x W x L): 6.1 x 7.9 x 13.2" (15.5 x 20 x 33.5 cm)

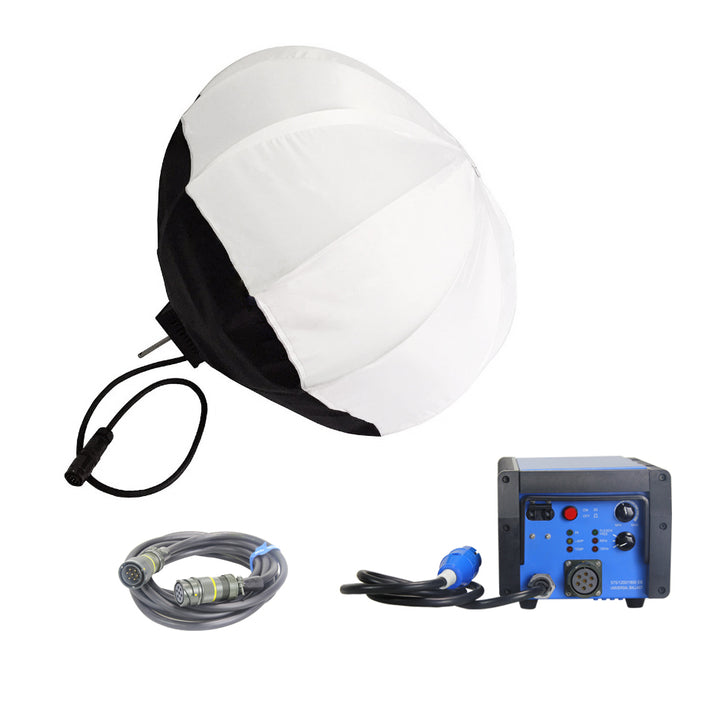

Package include:
1PC: Balloon Light Head
1PC:110V/220V 575W/1200W/1800W electronic ballast ( frequency 60Hz / 1000Hz / flicker-free, NO DMX function.)

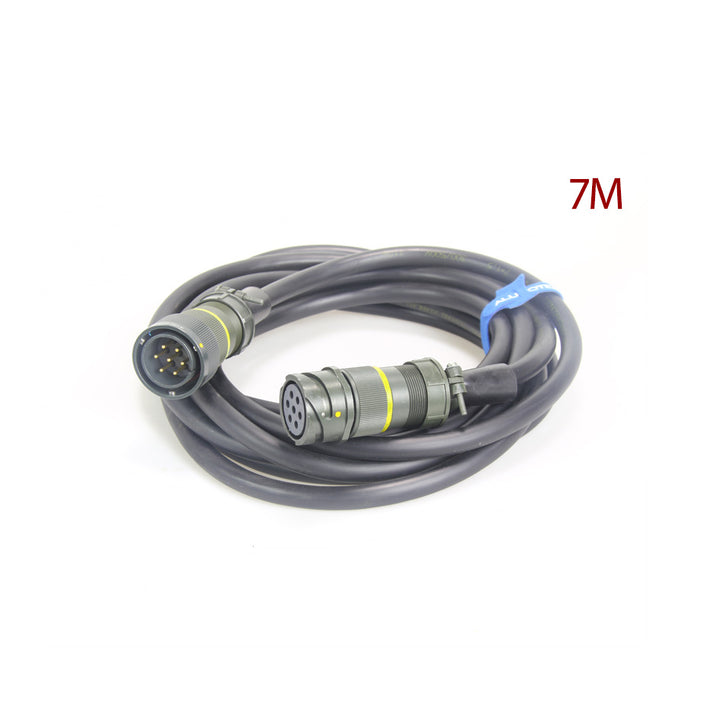

1PC:7m extension cable (ballast to light head)
Ballast power: 575 / 1200 / 1800 watts
supply voltage:110V/220V AC 50/60Hz L,N,PE
Frequency mode: 60Hz/ 1000Hz/ flicker-free
Power factor: c > 0.98
Lamp power: 575W / 1200W / 1800W (constant control)
Current characteristic: square wave,60Hz
Dimming range: 100% - 50%
Nominal lamp power starting: cold start and hot re-strike
Typical light ripple: typ. <3%
Power cord: 1.5m
Protection class: IP32
Material: metal housing
Product weight: 8 kg
Dimensions (H x W x L): 6.1 x 7.9 x 13.2" (15.5 x 20 x 33.5 cm)
Package include:
1PC: Balloon Light Head
1PC:110V/220V 575W/1200W/1800W electronic ballast ( frequency 60Hz / 1000Hz / flicker-free, NO DMX function.)
1PC:7m extension cable (ballast to light head)
