Description
|
Light Head
|
|
|
Lamp head type
|
HMI light
|
|
Power
|
4000W
|
|
Color temperature
|
6000K
|
|
Bulb socket / lamp base
|
metal halide 2500W/SE, 4000W/SE, G38
|
|
UV glass lens diameter
|
300 mm / 11.81''
|
|
Barn door diameter
|
413 mm / 16.26''
|
|
Filter Insertion diameter
|
400 mm / 15.75''
|
|
Mounting
|
spigot 28mm
|
|
Power cable length
|
1.5m
|
|
Extension cable length
|
7m
|
|
Product size
|
570 x 402 x 511 mm
|
|
Product weight
|
28KG
|
|
Protection class
|
 IP 23
|
|
|
|
|
Ballast
|
|
|
Ballast type
|
electronic ( NO DMX )
|
|
Ballast power:
|
2500/4000 watts
|
|
Line power
|
4650VA (max)
|
|
Supply voltage
|
220V AC 50/60Hz L,N,PE
|
|
requency mode
|
60Hz/1000Hz flicker-free
|
|
Power factor
|
c > 0.98
|
|
Lamp power
|
2500W / 4000W (constant control)
|
|
Dimming range
|
100% - 50%
|
|
Nominal lamp power starting
|
cold strike
|
|
Typical light ripple
|
typ. <3%
|
|
Power cord
|
1.5m
|
|
Protection class
|
 IP32
|
|
Material
|
Aluminum
|
|
Product weight
|
20 KG
|
|
Dimensions (H x W x L)
|
243x370x450 mm
|
Package include:

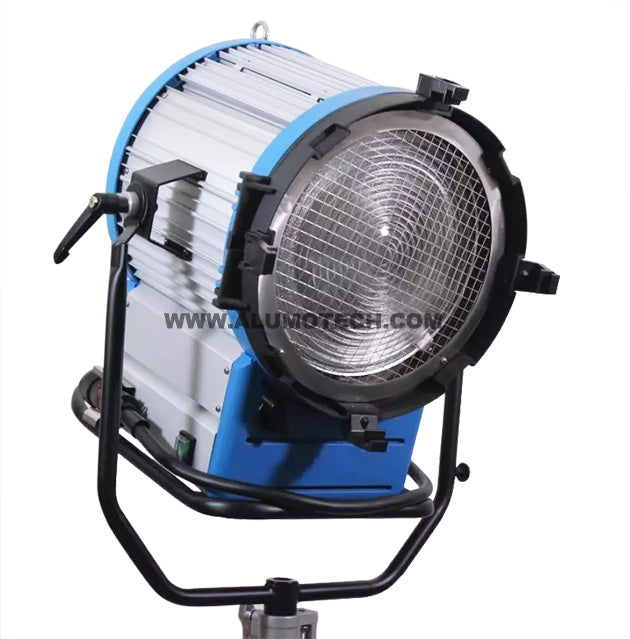

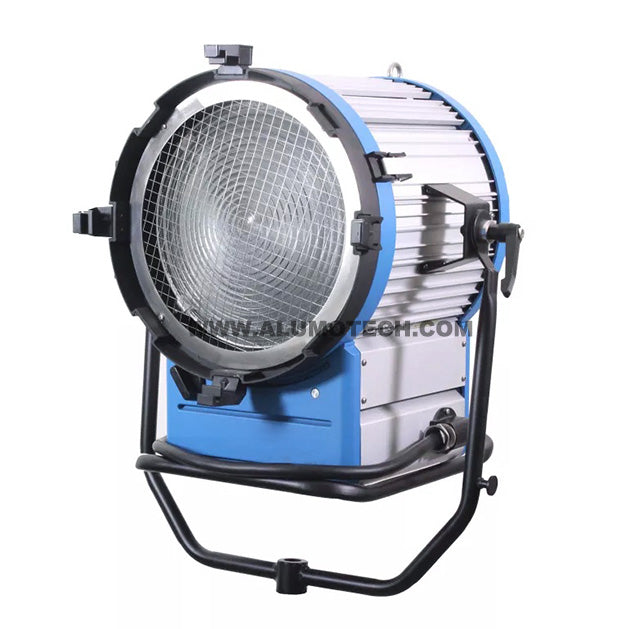

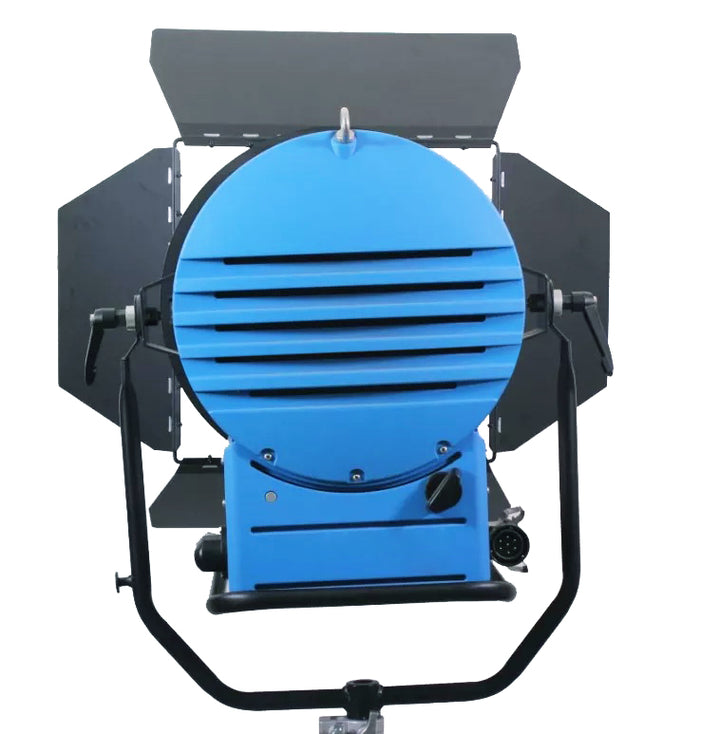

1PC:M40-clone HMI Fresnel Light Head 2500w/4000w with 1.5m power cable

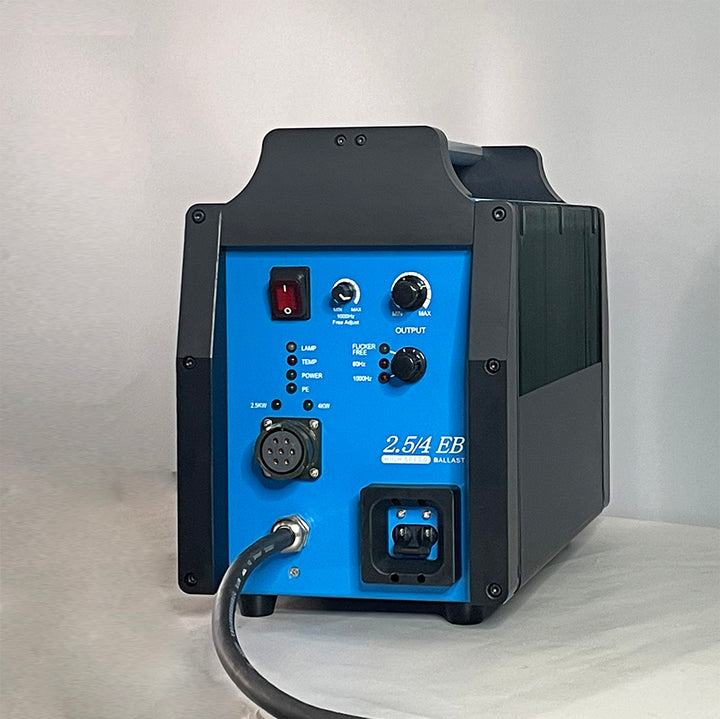

1PC:220V 2500W & 4000W electronic ballast ( frequency 50/ 60Hz / flicker-free, NO DMX function.)

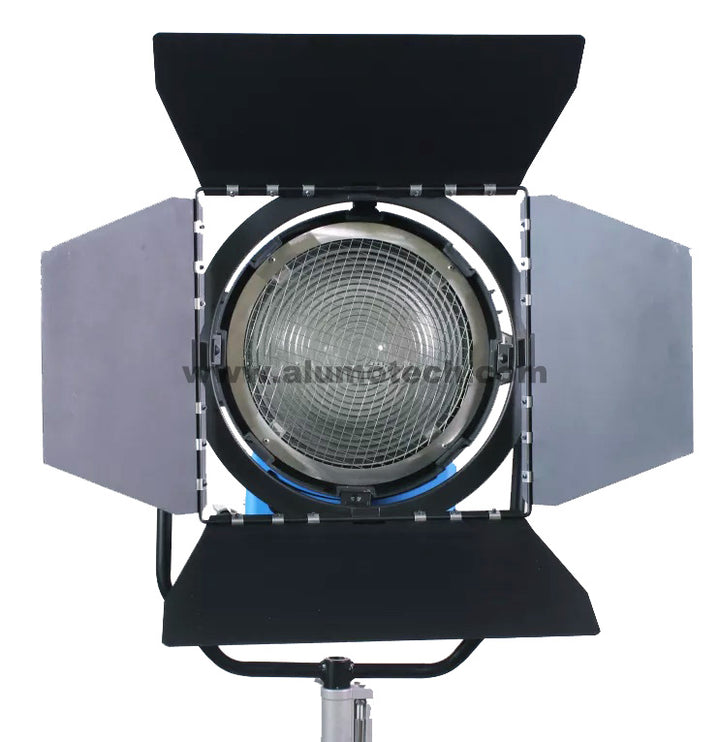

1PC: Set of 4 Leaf Barn Door
1PC: Yoke bar with 28mm spigot
1PC:7m extension cable (ballast to light head)
1PC:220V 2500W & 4000W electronic ballast ( frequency 50/ 60Hz / flicker-free, NO DMX function.)
1PC: Set of 4 Leaf Barn Door
1PC: Yoke bar with 28mm spigot
1PC:7m extension cable (ballast to light head)
