Description
DESCRIPTION

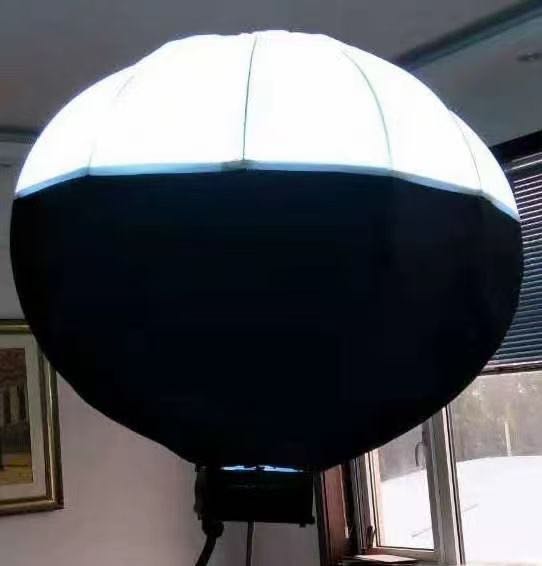

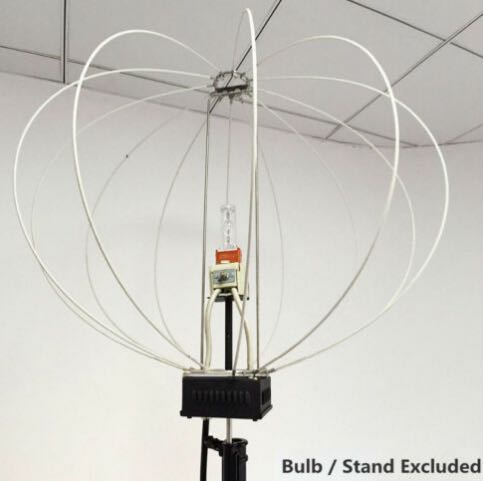

Parameter for Balloon Light Head
Lamp head type: Max
Power: 2500W / 4000W
Color temperature:6000K
Bulb socket / lamp base: metal halide 2500W/SE, 4000W/SE, G38
Product weight: 19 kg
Protection class: IP 23
Power: 2500W / 4000W
Color temperature:6000K
Bulb socket / lamp base: metal halide 2500W/SE, 4000W/SE, G38
Product weight: 19 kg
Protection class: IP 23
Light Ballast
Our HMI ballasts provide the latest standards in ballast technology. Flicker free, low noise, high output, this ballast is ideal
for most demanding. A rugged and compact design offers easy handling in the field.
Safety circuits such as over-voltage, over-temperature and short-circuit protection gives safe and reliable operation dimming to 50% of full power. Active Line Filter (A.L.F.) and P.F.C assures consistent color output, despite dimming, or main voltage fluctuations. Universal voltage at a switch of a button and flicker free mode. Compatible with 2500W or 4000W PAR units.
Parameter for Ballast
Ballast type: electronic ( NO DMX )
Ballast power:2500/4000 watts
line power:4650VA (max)
supply voltage:110V/220V AC 50/60Hz L,N,PE
Frequency mode: 60Hz/ 1000Hz/ flicker-free
Power factor: c > 0.98
Lamp power: 2500W-4000W (constant control)
Current characteristic: square wave,60Hz
Dimming range: 100% - 50%
Nominal lamp power starting: cold start and hot re-strike
Typical light ripple: typ. <3%
Power cord: 1.5m
Protection class: IP32
Material: metal housing
Product weight: 20 kg
Dimensions (H x W x L): 243x370x450 mm

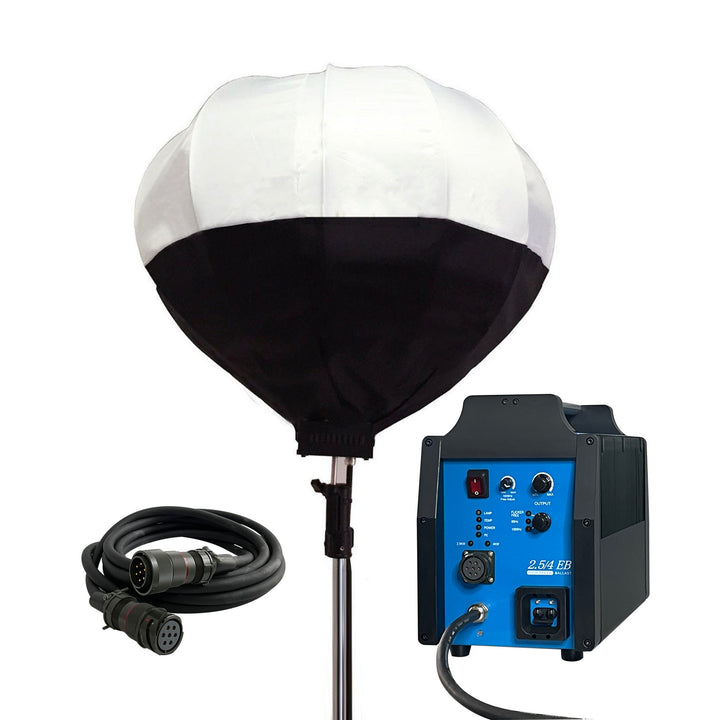

Package include:
1PC: Balloon Light Head
1PC:110V/220V 2500W & 4000W electronic ballast ( frequency 50/ 60Hz / flicker-free, NO DMX function.)
1PC:7m extension cable (ballast to light head)
Ballast power:2500/4000 watts
line power:4650VA (max)
supply voltage:110V/220V AC 50/60Hz L,N,PE
Frequency mode: 60Hz/ 1000Hz/ flicker-free
Power factor: c > 0.98
Lamp power: 2500W-4000W (constant control)
Current characteristic: square wave,60Hz
Dimming range: 100% - 50%
Nominal lamp power starting: cold start and hot re-strike
Typical light ripple: typ. <3%
Power cord: 1.5m
Protection class: IP32
Material: metal housing
Product weight: 20 kg
Dimensions (H x W x L): 243x370x450 mm
Package include:
1PC: Balloon Light Head
1PC:110V/220V 2500W & 4000W electronic ballast ( frequency 50/ 60Hz / flicker-free, NO DMX function.)
1PC:7m extension cable (ballast to light head)
